1. Made of latex
2. Silicone coated
3. Color coding for size identification
4. Sterilized by EO
5. For single use only
6. Available with rubber valve

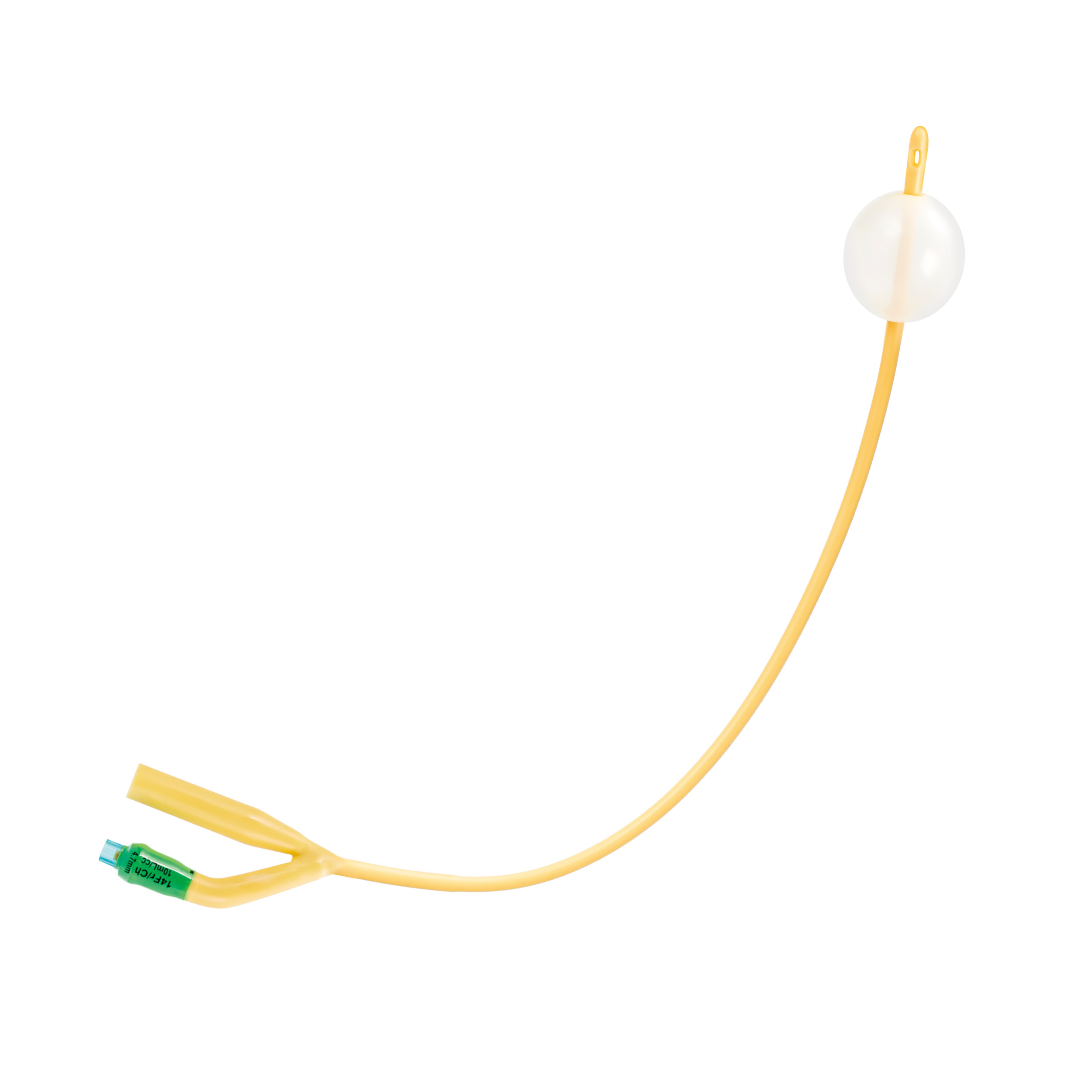

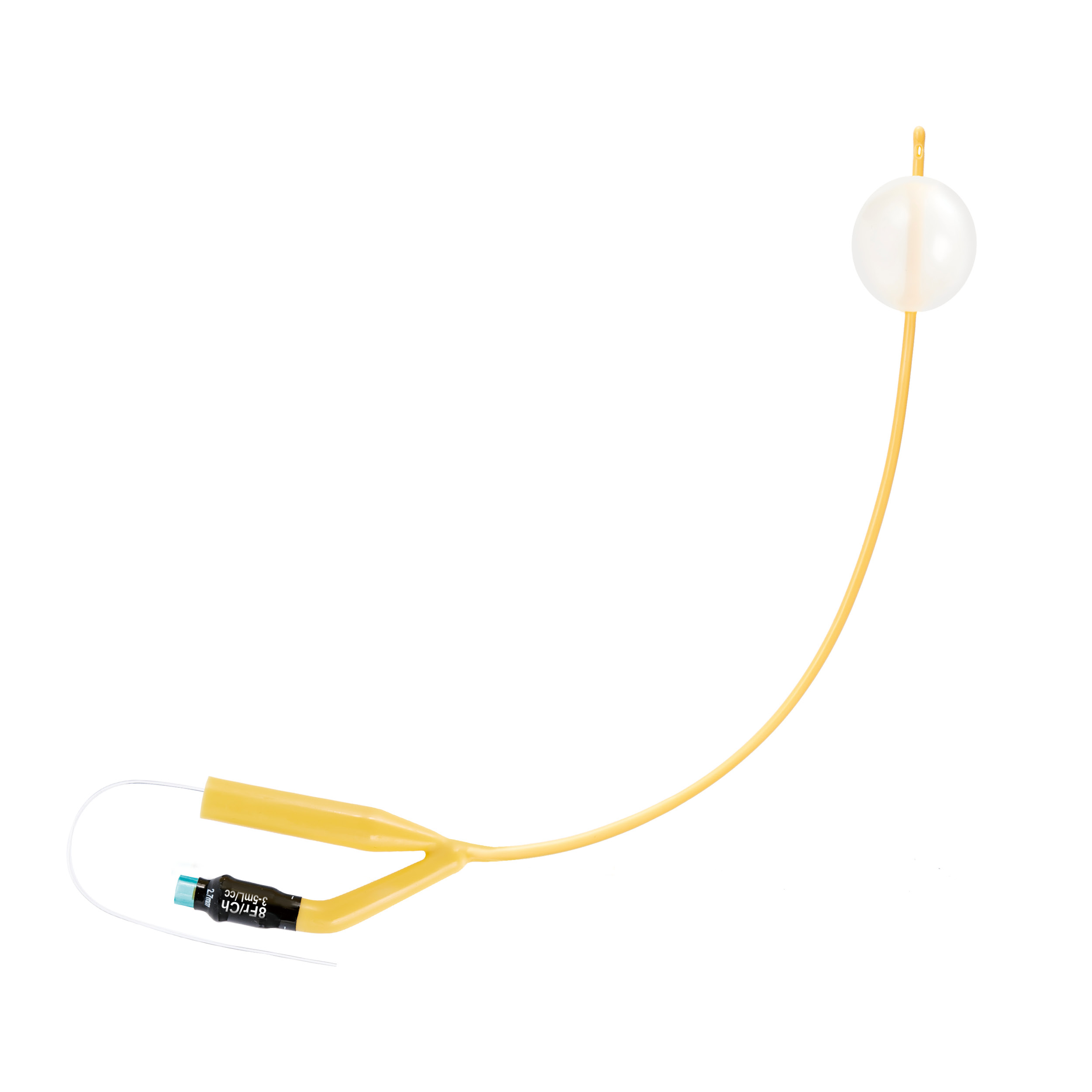

| 2-way Pediatric | ||||
| Size (Fr/Ch) | Balloon (mL) | Color Code | Length (mm) | Cat. No. (Plastic Valve) |
| 6 | 3 | Light red | 270 | F01A060602 |
| 8 | 3-5 | Black | 270 | F01A060803 |
| 10 | 3-5 | Grey | 270 | F01A061003 |
| 2-way Standard | ||||
| Size (Fr/Ch) | Balloon (mL) | Color Code | Length (mm) | Cat. No. (Plastic Valve) |
| 12 | 10 | White | 400 | F01A021207 |
| 14 | 10 | Green | 400 | F01A021407 |
| 16 | 10 | Orange | 400 | F01A021607 |
| 18 | 30 | Red | 400 | F01A021810 |
| 20 | 30 | Yellow | 400 | F01A022010 |
| 22 | 30 | Violet | 400 | F01A022210 |
| 24 | 30 | Blue | 400 | F01A022410 |
| 26 | 30 | Pink | 400 | F01A022610 |
| 2-way Female | ||||
| Size (Fr/Ch) | Balloon (mL) | Color Code | Length (mm) | Cat. No. (Plastic Valve) |
| 12 | 10 | White | 260 | F01A041207 |
| 14 | 10 | Green | 260 | F01A041407 |
| 16 | 10 | Orange | 260 | F01A041607 |
| 18 | 30 | Red | 260 | F01A041810 |
| 20 | 30 | Yellow | 260 | F01A042010 |
| 22 | 30 | Violet | 260 | F01A042210 |

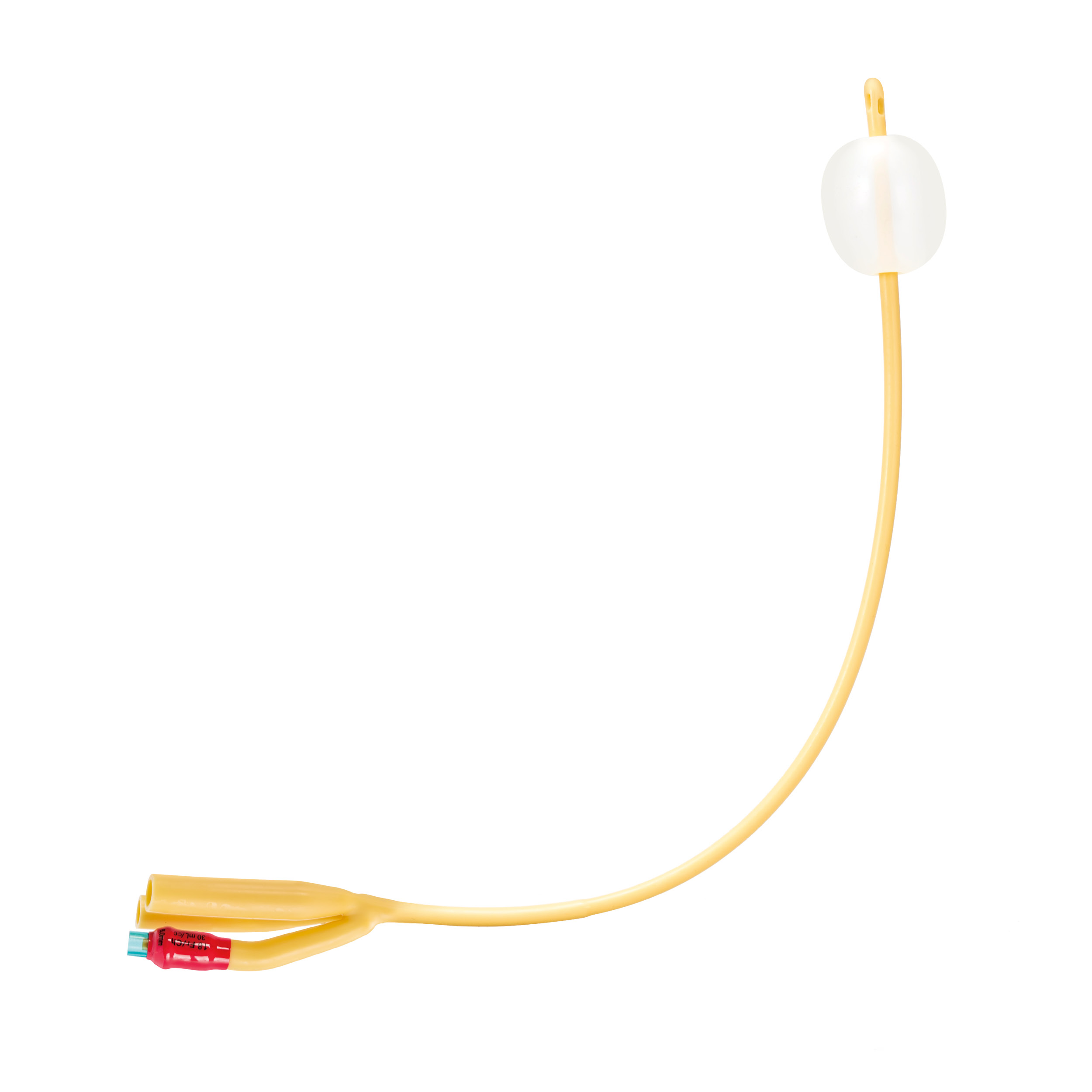

| 3-way Standard | ||||
| Size (Fr/Ch) | Balloon (mL) | Color Code | Length (mm) | Cat. No. (Plastic Valve) |
| 16 | 30 | Orange | 400 | F01A101610 |
| 18 | 30 | Red | 400 | F01A101810 |
| 20 | 30 | Yellow | 400 | F01A102010 |
| 22 | 30 | Violet | 400 | F01A102210 |
| 24 | 30 | Blue | 400 | F01A102410 |
| 26 | 30 | Pink | 400 | F01A102610 |
| * Available with 5mL, 5-10mL, 5-15mL, 15mL, 15-30mL, 30-50mL balloon. Please check the product brochure for more specifications. | ||||
|
|
|
|
|
|
|
|
|
|
|
|
