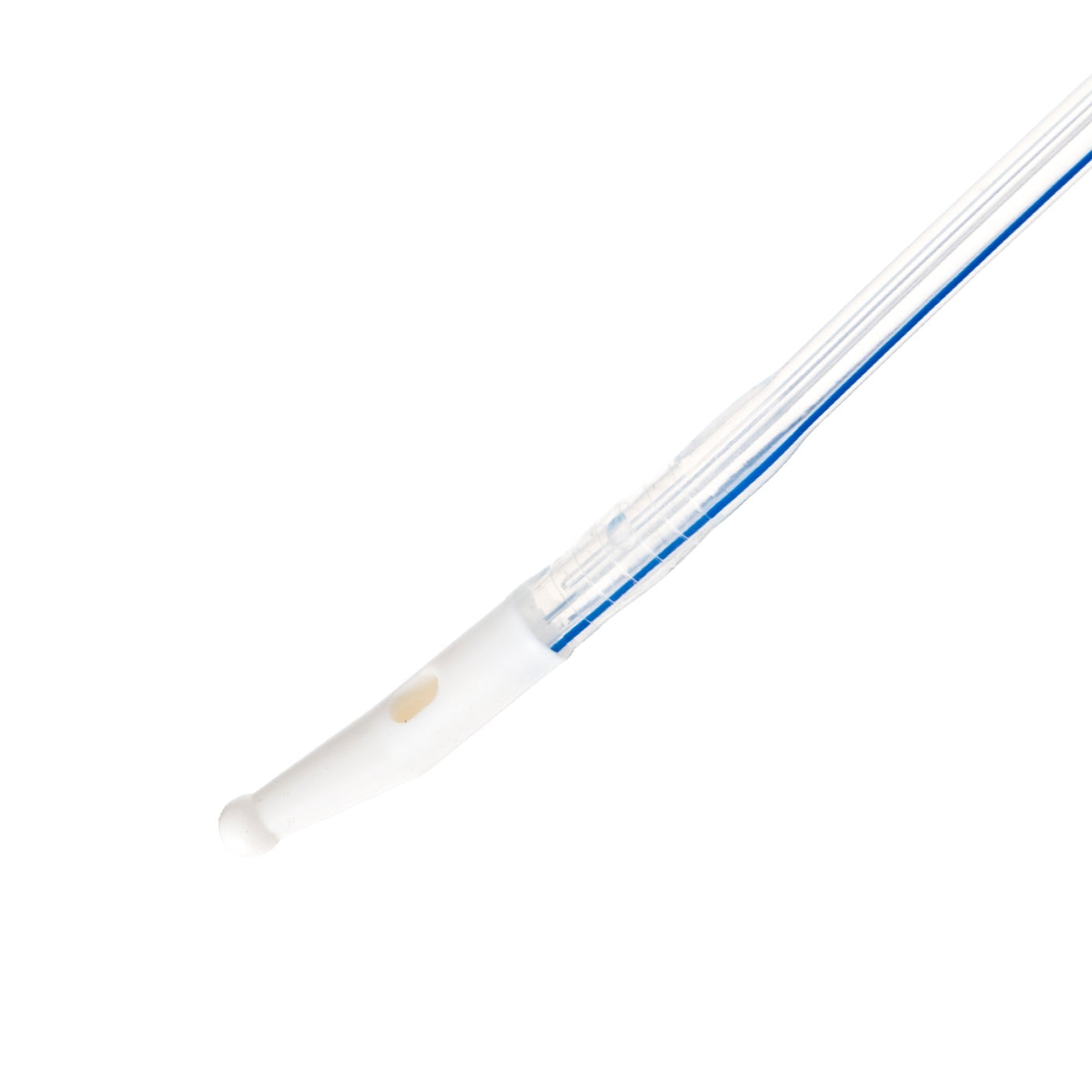

Well lead tiemann tip catheters are available with different materials. The tiemann tip is slightly curved which helps to get through the prostate easily. The tiemann tip catheters are intended for use by patient with enlarged prostate and patient with urinary tract obstructions or stricture.
1. Made of biocompatible silicone material
2. Color coding for size identification
3. Plastic valve only
4. Sterilized by EO
5. For single use only
6. Available with different types
| 2-way Tiemann | ||||||
| Size (Fr/Ch) | Color Code | Length (mm) | Balloon (5mL) | Balloon (10mL) | Balloon (15mL) | Balloon (30mL) |
| 12 | White | 420 | F01B051204 | F01B051207 | F01B051208 | — |
| 14 | Green | 420 | F01B051404 | F01B051407 | F01B051408 | — |
| 16 | Orange | 420 | F01B051604 | F01B051607 | F01B051608 | F01B051610 |
| 18 | Red | 420 | — | F01B051807 | F01B051808 | F01B051810 |
| 20 | Yellow | 420 | — | F01B052007 | F01B052008 | F01B052010 |
| 22 | Violet | 420 | — | F01B052207 | F01B052208 | F01B052210 |
| 24 | Blue | 420 | — | F01B052407 | F01B052408 | F01B052410 |
| 26 | Pink | 420 | — | F01B052607 | F01B052608 | F01B052610 |
|
|
|
|
|
|
|
|
|
|
|
|
