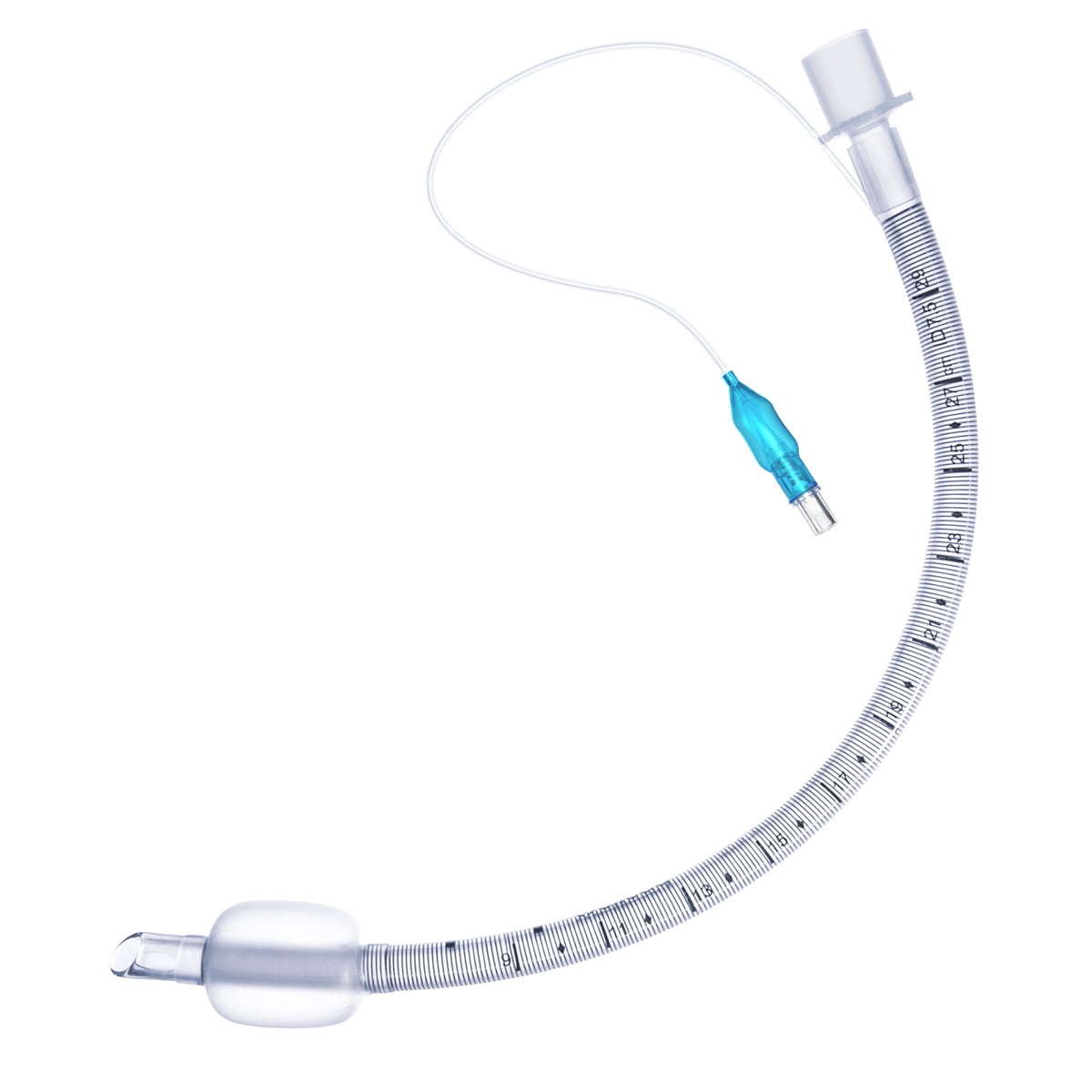

Designed for neurosurgical procedures, head and neck procedures, etc.
With a spiral wire embedded in the tracheal tube provides effective resistance to kinking.
1. Available with High volume, low pressure cuff & Low profile cuff & Uncuffed
2. Radiopaque: Allowing clear identification of the tube on radiographic images
3. 15mm connector: Reliable connection to all standard equipment
4. Wire coil: Increasing flexibility, providing effective resistance to kinking

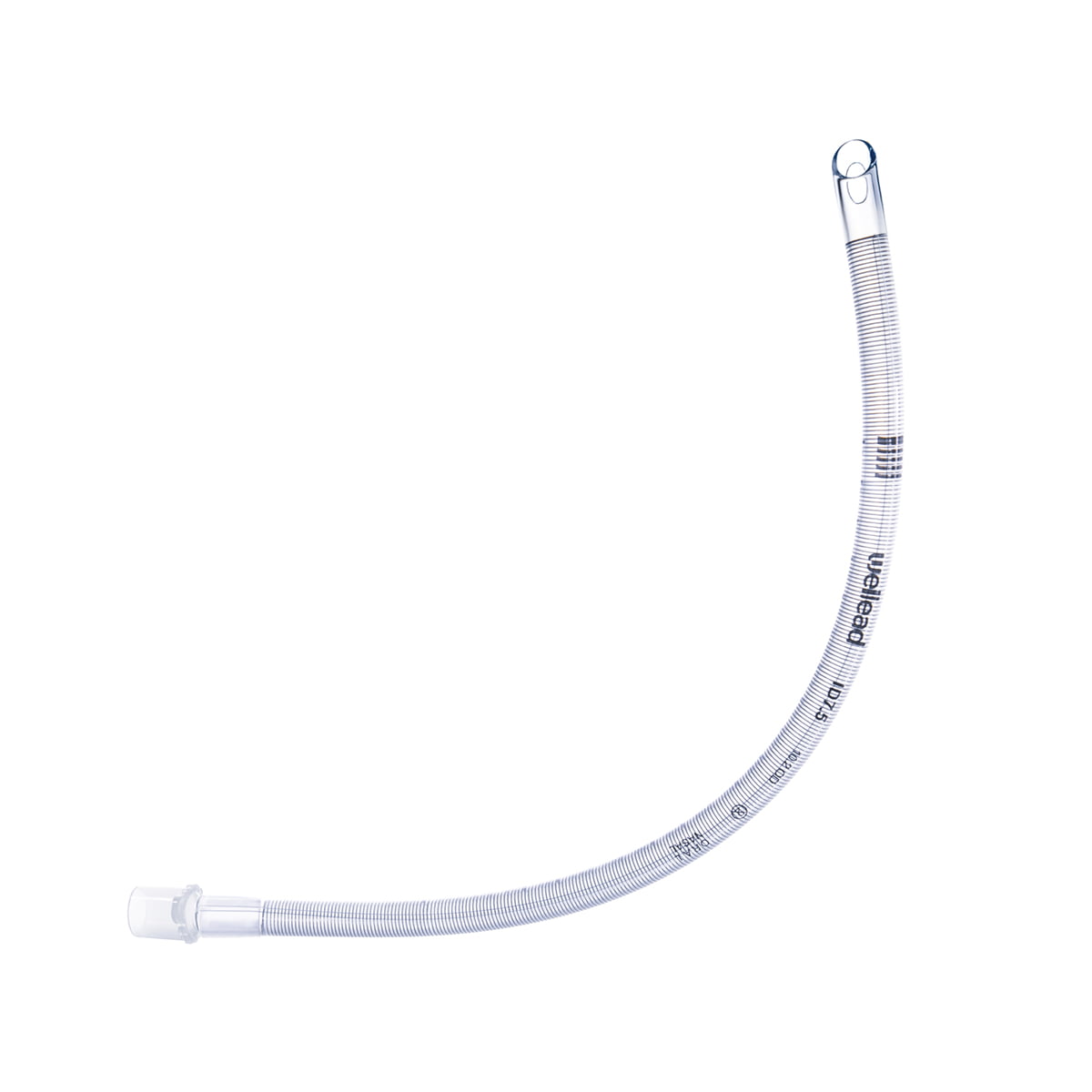

| Uncuffed | ||
| Size ID (mm) | Cat. No. (DEHP-FREE) | Cat. No. Bull Nose Tip (DEHP-FREE) |
| 3 | A01E02303F | A01E06303F |
| 3.5 | A01E02353F | A01E06353F |
| 4 | A01E02403F | A01E06403F |
| 4.5 | A01E02453F | A01E06453F |
| 5 | A01E02503F | A01E06503F |
| 5.5 | A01E02553F | A01E06553F |
| 6 | A01E02603F | A01C07603F |
| 6.5 | A01E02653F | A01E06653F |
| 7 | A01E02703F | A01E06703F |
| 7.5 | A01E02753F | A01C07753F |
| 8 | A01E02803F | A01E06803F |
| 8.5 | A01E02853F | A01E06853F |
| 9 | A01E02903F | A01E06903F |
| 9.5 | A01C02953F | A01E06953F |
| 10 | A01E02963F | A01E06963F |
| High Volume, Low Pressure Cuff | ||
| Size ID (mm) | Cat. No. (DEHP-FREE) | Cat. No. Bull Nose Tip (DEHP-FREE) |
| 3 | A01E01301F | A01E05301F |
| 3.5 | A01E01351F | A0E05351F |
| 4 | A01E01401F | A01E05401F |
| 4.5 | A01E01451F | A01E05451F |
| 5 | A01E01501F | A01C06501F |
| 5.5 | A01E01551F | A01E05551F |
| 6 | A01E01601F | A01E05601F |
| 6.5 | A01E01651F | A01E05651F |
| 7 | A01E01701F | A01E05701F |
| 7.5 | A01E01751F | A01E05751F |
| 8 | A01E01801F | A01E05801F |
| 8.5 | A01E01851F | A01E05851F |
| 9 | A01E01901F | A01E05901F |
| 9.5 | A01E01951F | A01E05951F |
| 10 | A01E01961F | A01E05961F |

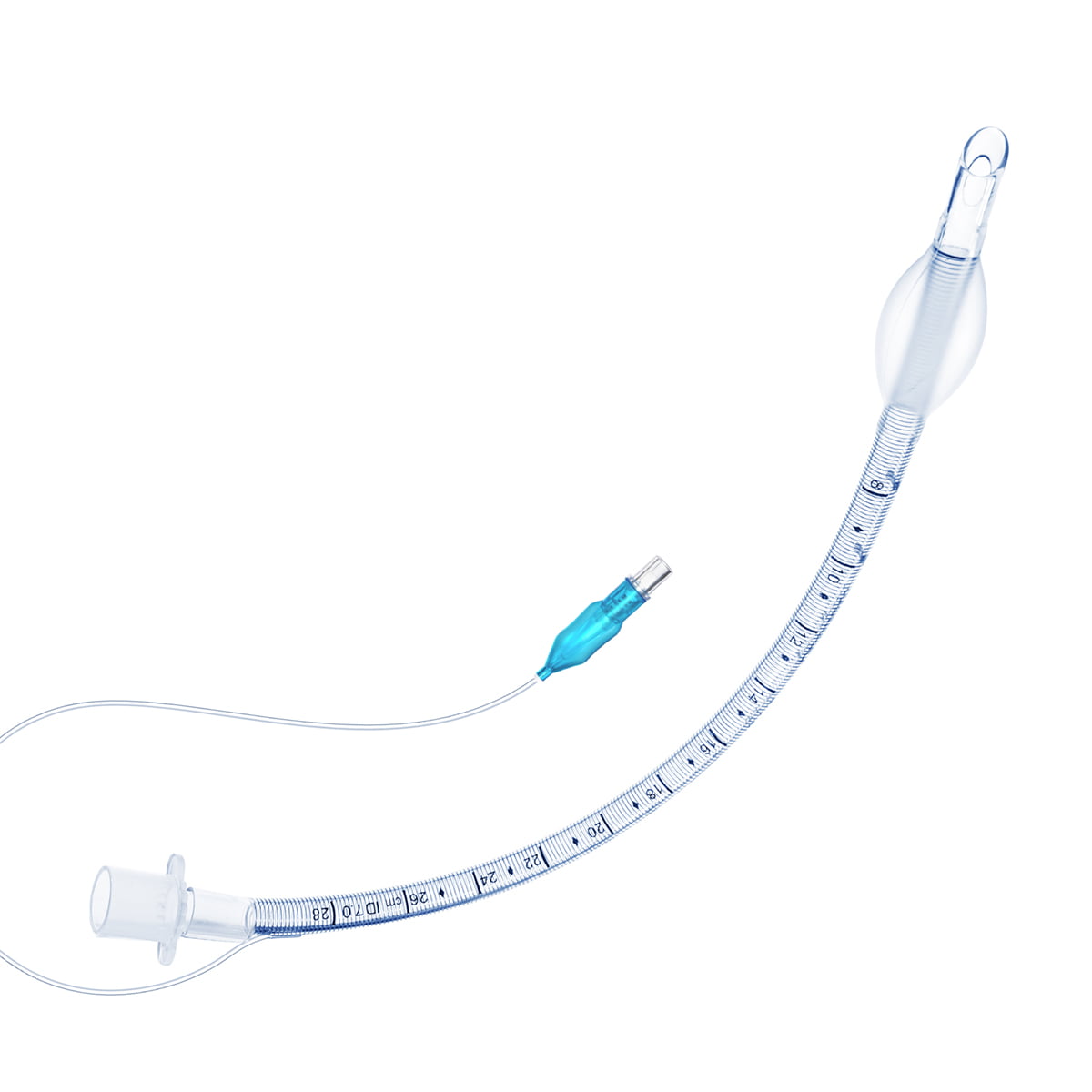

| Low Profile Cuff | ||
| Size ID (mm) | Cat. No. (DEHP-FREE) | Cat. No. Bull Nose Tip (DEHP-FREE) |
| 3 | A01E01302F | A01E05302F |
| 3.5 | A01E01352F | A01E05352F |
| 4 | A01E01402F | A01E05402F |
| 4.5 | A01E01452F | A01C06452F |
| 5 | A01E01502F | A01E05502F |
| 5.5 | A01E01552F | A01E05552F |
| 6 | A01E01602F | A01E05602F |
| 6.5 | A01E01652F | A01E05652F |
| 7 | A01E01702F | A01E05702F |
| 7.5 | A01E01752F | A01E05752F |
| 8 | A01E01802F | A01C06802F |
| 8.5 | A01E01852F | A01E05852F |
| 9 | A01E01902F | A01E05902F |
| 9.5 | A01E01952F | A01E05952F |
| 10 | A01E01962F | A01E05962F |
|
|
|
|
|
|
|
|
|
|
|
|
