Nasal preformed to reduce tube kinking during nasal intubation.
Used for facilitating positive pressure ventilation and maintaining upper airway patency in oral surgery and maxillofacial surgery.
1. Available with High volume, low pressure cuff & Low profile cuff & Uncuffed & PU Cuff
2. Radiopaque: Allowing clear identification of the tube on radiographic images
3. Valve: Ensuring continual cuff integrity
4. 15mm connector: Reliable connection to all standard equipment

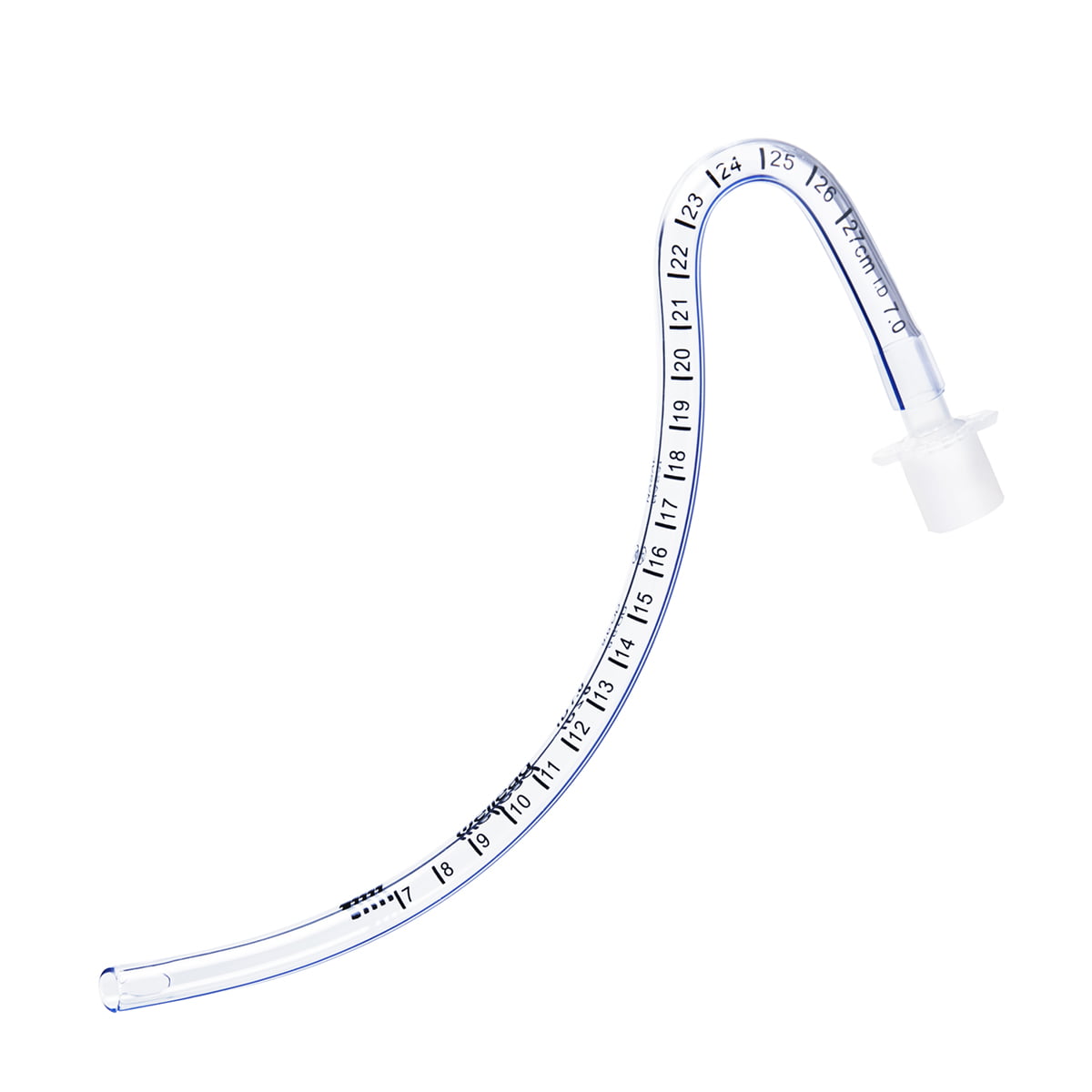

| Uncuffed | ||
| Size ID (mm) | Cat. No. (DEHP-FREE) | Cat. No. Bull Nose Tip (DEHP-FREE) |
| 3 | A01C02303F | A01C07303F |
| 3.5 | A01C02353F | A01C07353F |
| 4 | A01C02403F | A01C07403F |
| 4.5 | A01C02453F | A01C07453F |
| 5 | A01C02503F | A01C07503F |
| 5.5 | A01C02553F | A01C07553F |
| 6 | A01C02603F | A01C07603F |
| 6.5 | A01C02653F | A01C07653F |
| 7 | A01C02703F | A01C07703F |
| 7.5 | A01C02753F | A01C07753F |
| 8 | A01C02803F | A01C07803F |
| 8.5 | A01C02853F | A01C07853F |
| 9 | A01C02903F | A01C07903F |
| 9.5 | A01C02953F | A01C07953F |
| 10 | A01C02963F | A01C07963F |
| High Volume, Low Pressure Cuff | ||
| Size ID (mm) | Cat. No. (DEHP-FREE) | Cat. No. Bull Nose Tip (DEHP-FREE) |
| 3 | A01C01301F | A01C06301F |
| 3.5 | A01C01351F | A01C06351F |
| 4 | A01C01401F | A01C06401F |
| 4.5 | A01C01451F | A01C06451F |
| 5 | A01C01501F | A01C06501F |
| 5.5 | A01C01551F | A01C06551F |
| 6 | A01C01601F | A01C06601F |
| 6.5 | A01C01651F | A01C06651F |
| 7 | A01C01701F | A01C06701F |
| 7.5 | A01C01751F | A01C06751F |
| 8 | A01C01801F | A01C06801F |
| 8.5 | A01C01851F | A01C06851F |
| 9 | A01C01901F | A01C06901F |
| 9.5 | A01C01951F | A01C06951F |
| 10 | A01C01961F | A01C06961F |

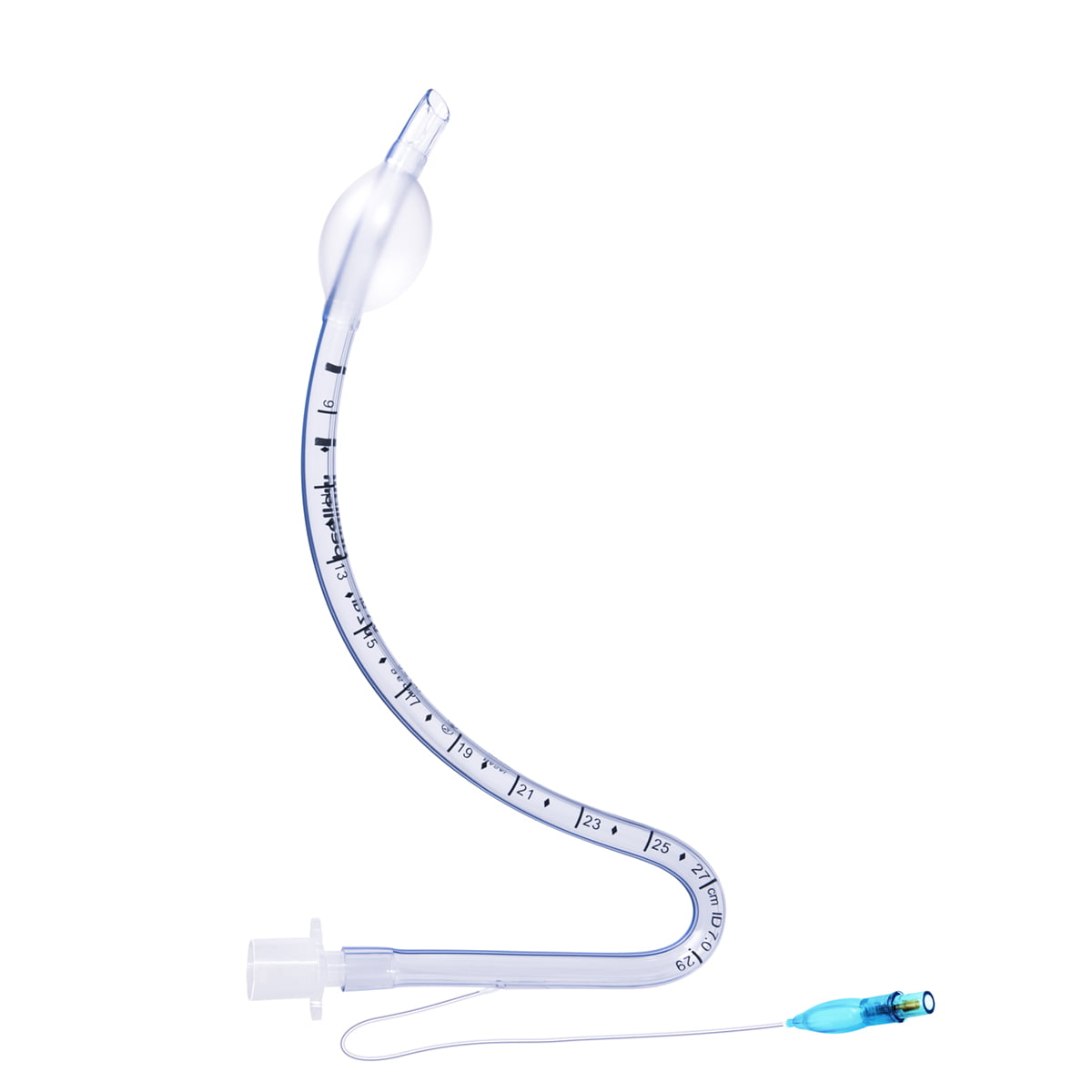

| Low Profile Cuff | ||
| Size ID (mm) | Cat. No. (DEHP-FREE) | Cat. No. Bull Nose Tip (DEHP-FREE) |
| 3 | A01C01302F | A01C06302F |
| 3.5 | A01C01352F | A01C06352F |
| 4 | A01C01402F | A01C06402F |
| 4.5 | A01C01452F | A01C06452F |
| 5 | A01C01502F | A01C06502F |
| 5.5 | A01C01552F | A01C06552F |
| 6 | A01C01602F | A01C06602F |
| 6.5 | A01C01652F | A01C06652F |
| 7 | A01C01702F | A01C06702F |
| 7.5 | A01C01752F | A01C06752F |
| 8 | A01C01802F | A01C06802F |
| 8.5 | A01C01852F | A01C06852F |
| 9 | A01C01902F | A01C06902F |
| 9.5 | A01C01952F | A01C06952F |
| 10 | A01C01 962F | A01C06962F |

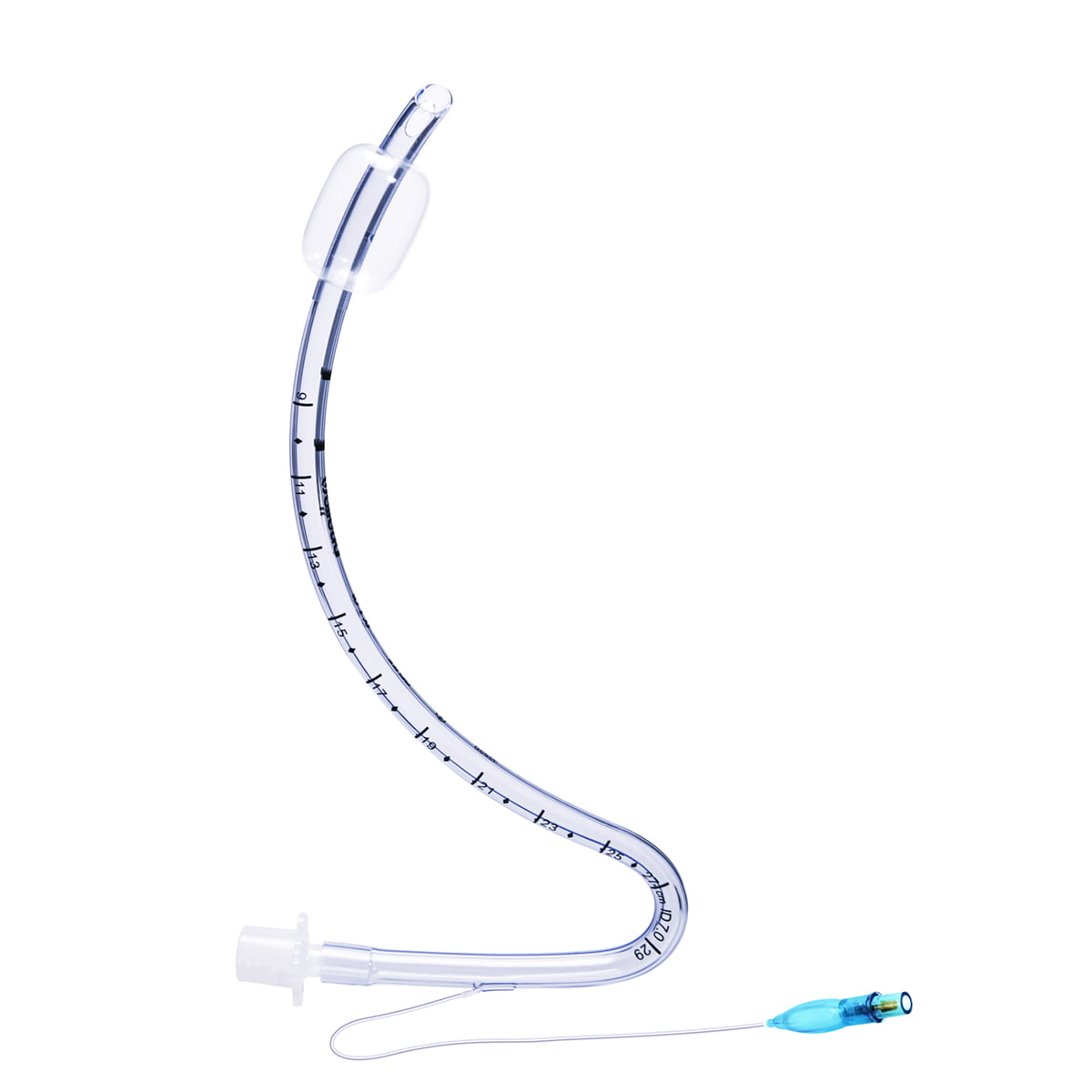

| PU Cuff | ||
| Size ID (mm) | Cat. No. (DEHP-FREE) | Cat. No. Bull Nose Tip (DEHP-FREE) |
| 3 | A01G02304F | A01G14304F |
| 3.5 | A01G02354F | A01G14354F |
| 4 | A01G02404F | A01G14404F |
| 4.5 | A01G02454F | A01G14454F |
| 5 | A01G02504F | A01G14504F |
| 5.5 | A01G02554F | A01G14554F |
| 6 | A01G02604F | A01G14604F |
| 6.5 | A01G02654F | A01G14654F |
| 7 | A01G02704F | A01G14704F |
| 7.5 | A01G02754F | A01G14754F |
| 8 | A01G02804F | A01G14804F |
| 8.5 | A01G02854F | A01G14854F |
| 9 | A01G02904F | A01G14904F |
| 9.5 | A01G02954F | A01G14954F |
| 10 | A01G02964F | A01G14964F |
|
|
|
|
|
|
|
|
|
|
|
|
