Catheter mount, as a bridge of patient end and breathing circuit end, the patient end can be in combination with anesthesia mask, HMEF, ET tube, laryngeal mask and etc. It is used to connect the patient to the ventilator breathing circuits/systems for added convenience when using breathing circuits. Universal patient connectors and machine end connectors provide more options for airway management.

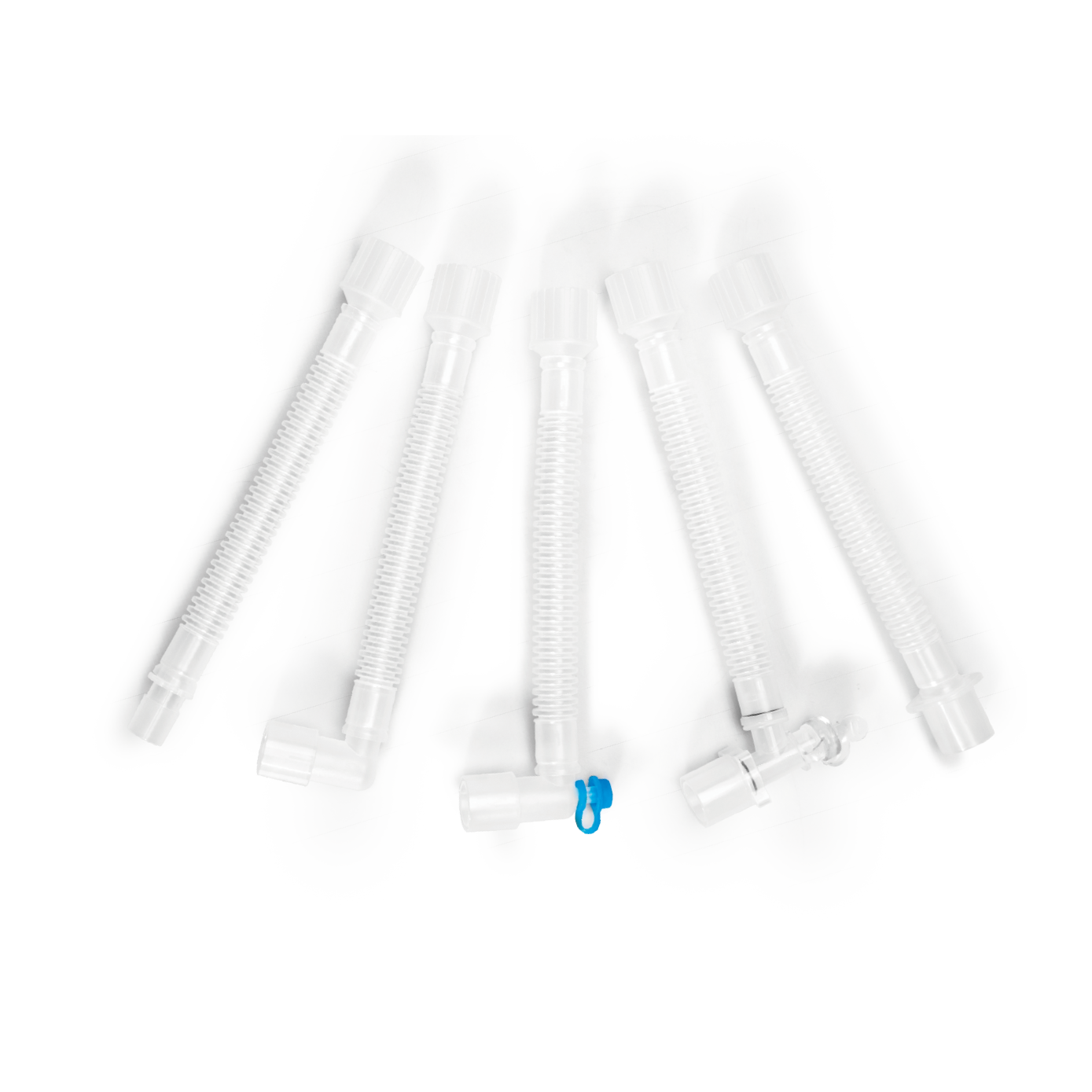

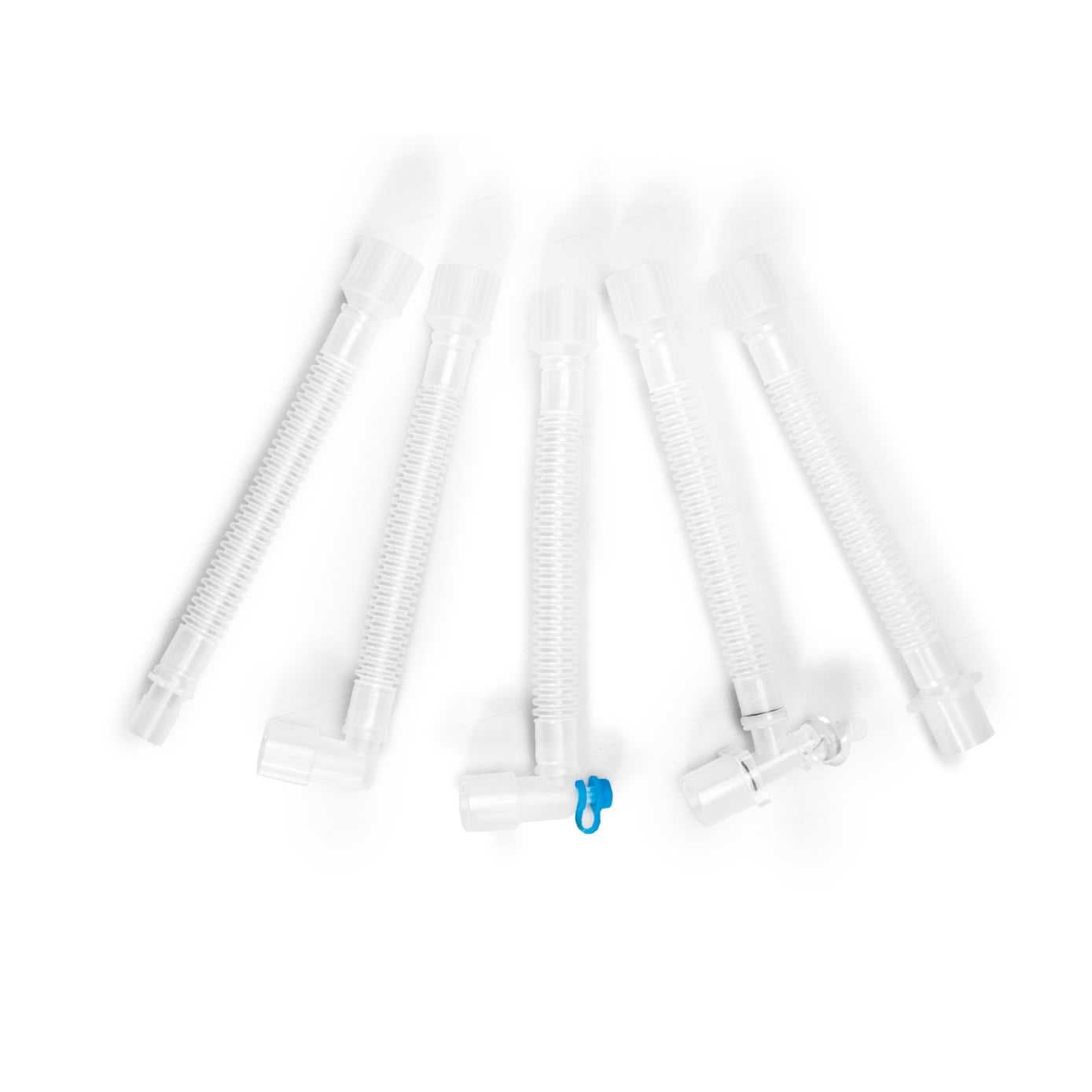

| Corrugated | |||
| Machine End | Patient End | Cat. No. (Length 15cm) | Cat. No. (Length 20cm) |
| 22F Connector | 15F/22M Straight Connector | A13C030119 | A13C030129 |
| 22F Connector | 15M Straight Connector | A13C03011A | A13C03012A |
| 22F Connector | 90° Elbow Connector - No Port | A13C030116 | A13C030126 |
| 22F Connector | 90° Elbow Connector with CO2 Port | A13C03011B | A13C03012B |
| 22F Connector | Double Swivel Elbow Connector with Port & Cap | A13C030112 | A13C030122 |
| 15M Connector | 15F/22M Straight Connector | A13C030110 | A13C030120 |
| 15M Connector | 15M Straight Connector | A13C030118 | A13C030128 |
| 15M Connector | 90° Elbow Connector - No Port | A13C030111 | A13C030121 |
| 15M Connector | 90° Elbow Connector with CO2 Port | A13C030117 | A13C030127 |
| 15M Connector | Double Swivel Elbow Connector with Port & Cap | A13C030113 | A13C030123 |

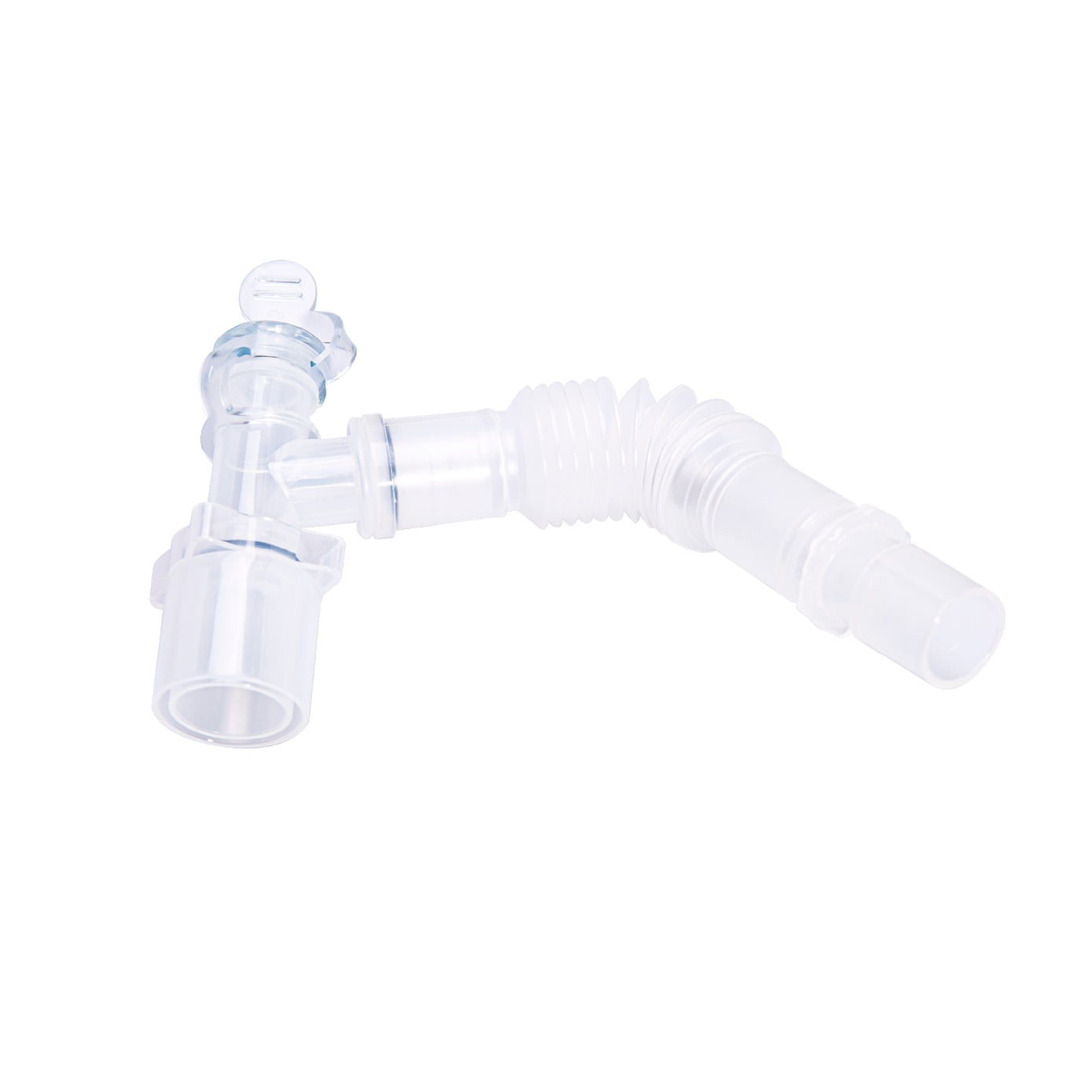

| Extendable | |||
| Machine End | Patient End | Cat. No. (Length 15cm) | Cat. No. (Length 20cm) |
| 22F Connector | 15F/22M Straight Connector | A13C030219 | A13C030229 |
| 22F Connector | 15M Straight Connector | A13C03021A | A13C03022A |
| 22F Connector | 90° Elbow Connector - No Port | A13C030216 | A13C030226 |
| 22F Connector | 90° Elbow Connector with CO2 Port | A13C03021B | A13C03022B |
| 22F Connector | Double Swivel Elbow Connector with Port & Cap | A13C030212 | A13C030222 |
| 15M Connector | 15F/22M Straight Connector | A13C030210 | A13C030220 |
| 15M Connector | 15M Straight Connector | A13C030218 | A13C030228 |
| 15M Connector | 90° Elbow Connector - No Port | A13C030211 | A13C030221 |
| 15M Connector | 90° Elbow Connector with CO2 Port | A13C030217 | A13C030227 |
| 15M Connector | Double Swivel Elbow Connector with Port & Cap | A13C030213 | A13C030223 |

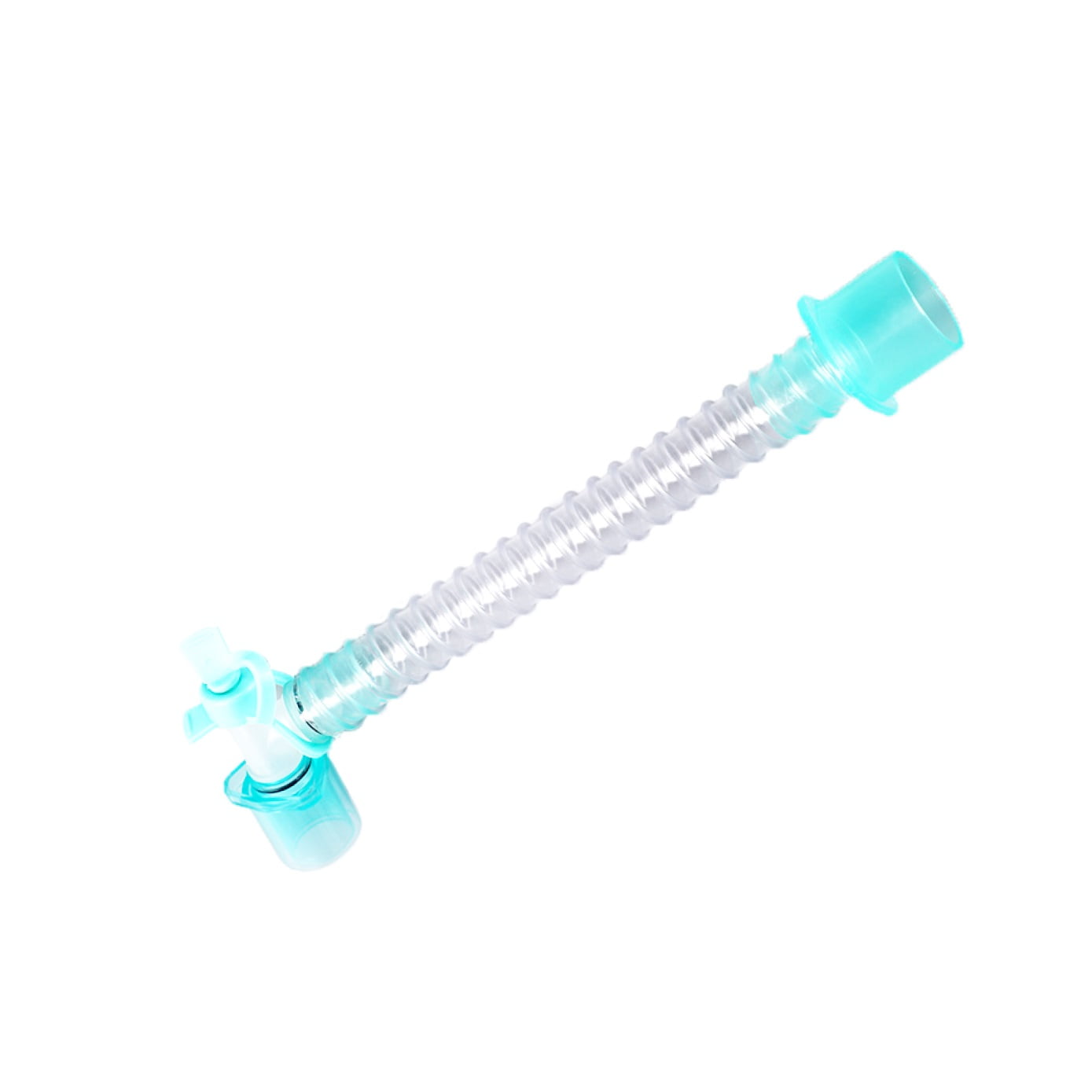

| Smoothbore | |||
| Machine End | Patient End | Cat. No. (Length 15cm) | Cat. No. (Length 20cm) |
| 22F Connector | 90° Elbow Connector - No Port | A13C030316 | A13C030326 |
| 22F Connector | 90° Elbow Connector with CO2 Port | A13C03031B | A13C03032B |
| 22F Connector | Double Swivel Elbow Connector with Port & Cap | A13C030312 | A13C030322 |
| 15M Connector | 90° Elbow Connector - No Port | A13C030311 | A13C030321 |
| 15M Connector | 90° Elbow Connector with CO2 Port | A13C030317 | A13C030327 |
| 15M Connector | Double Swivel Elbow Connector with Port & Cap | A13C030313 | A13C030323 |
|
|
|
|
|
|
|
|
|
|
|
|
